Product Introduction

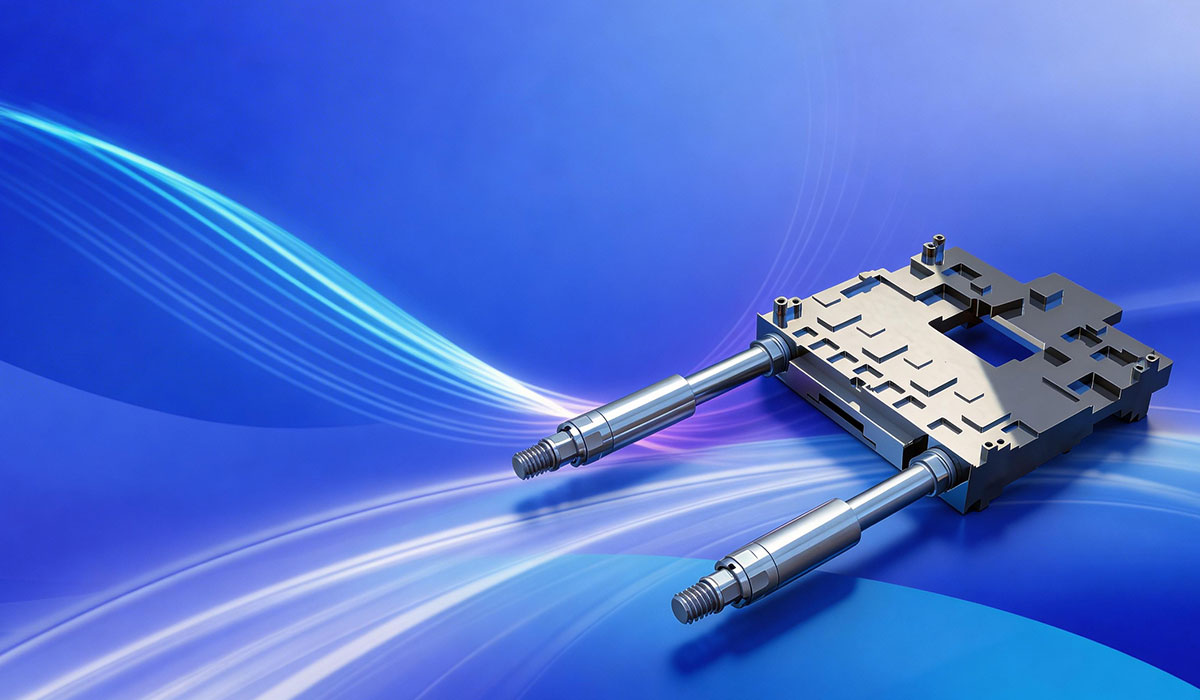

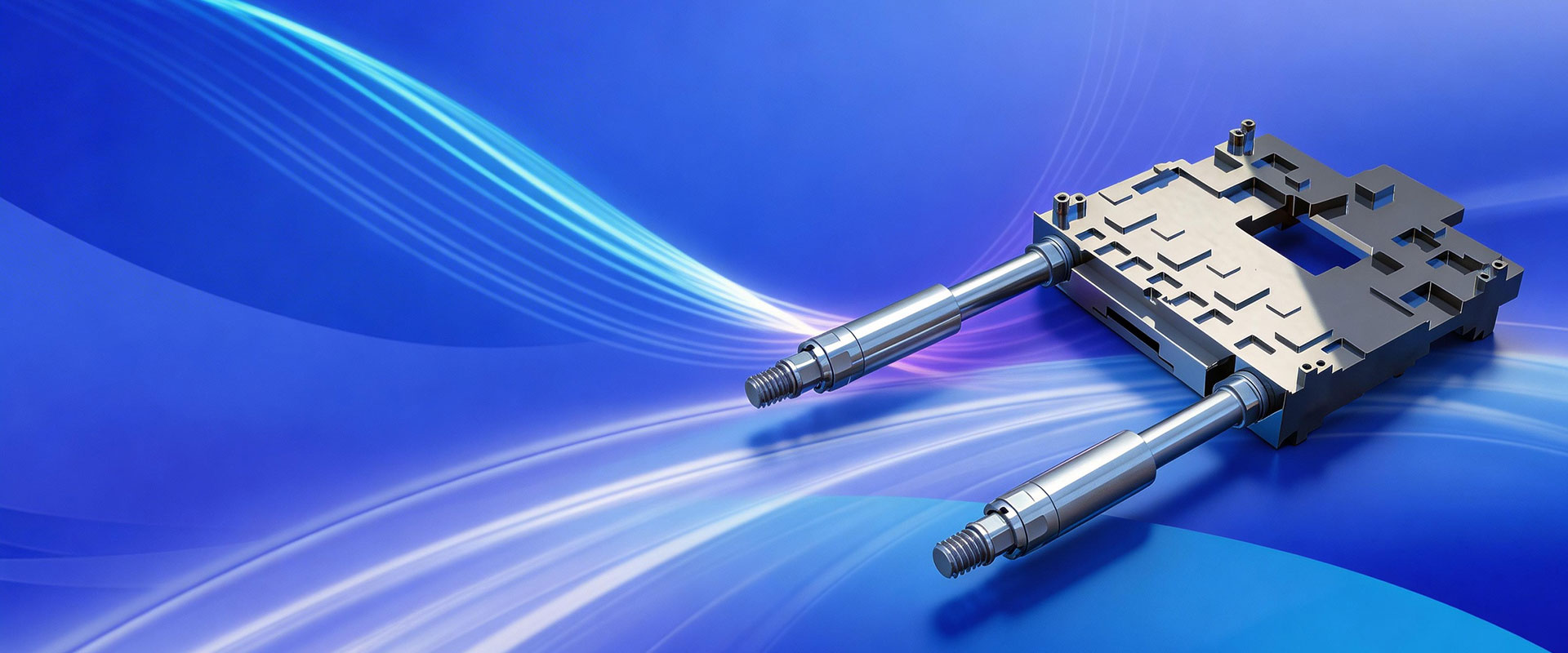

12.8T Optical Module Liquid Cooling Product

Orthogonal Flow Channels:
Designed to cool heat sources at different positions and power densities.

Flow Rate Matching for Enhanced Heat Transfer:
Maintains low pressure drop to ensure sufficient flow rate, supporting heat flux densities up to 50 W/cm².

TeraCule Proprietary Mini QD Blind-Mating Connector:
Provides improved alignment compensation with a floating tolerance of ±0.2 mm. Lower pressure drop at the same flow rate, delivering up to 20% improvement over industry standards.

System Configurations

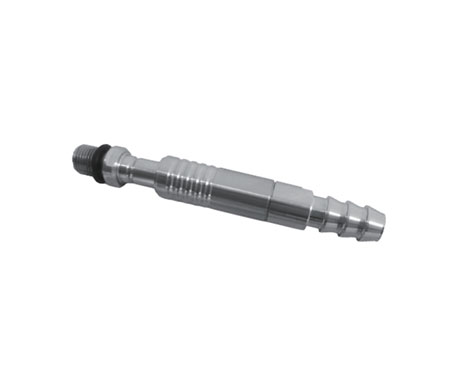

TeraCule Self-developed MiniQD Product

Safe and Reliable:
Seals are maintained in both connected and disconnected states, ensuring leak-free operation and reliable performance.

Wear and Corrosion Resistance:
The housing material and plating provide excellent wear and corrosion resistance.

Large Flow Path; Strong Misalignment Tolerance:
-Maximum outer diameter: 8 mm
-Effective flow path diameter: 2.6 mm
-Floating range: ±0.2 mm

Compliant with Sealed Connection Standards:
Fluid connectors support diverse installation configurations with tubing and cold plates.

Technical Specifications

Key Parameters	Parameter Description
Dimensions	2U
Coolant	DI water, PG25
Inlet Temperature	40 ℃
Flow Rate	1
Pressure Drop	≤28 kPa
Total Power Consumption	1384 W
DIMM Power Consumption	36.4 W*40
DIMM Tcase	68 ℃
Quick Connector	UQD04 Socket
Note: Performance may vary depending on operating conditions. For data not listed, please contact TeraCule.
