Refrigerant-to-Liquid

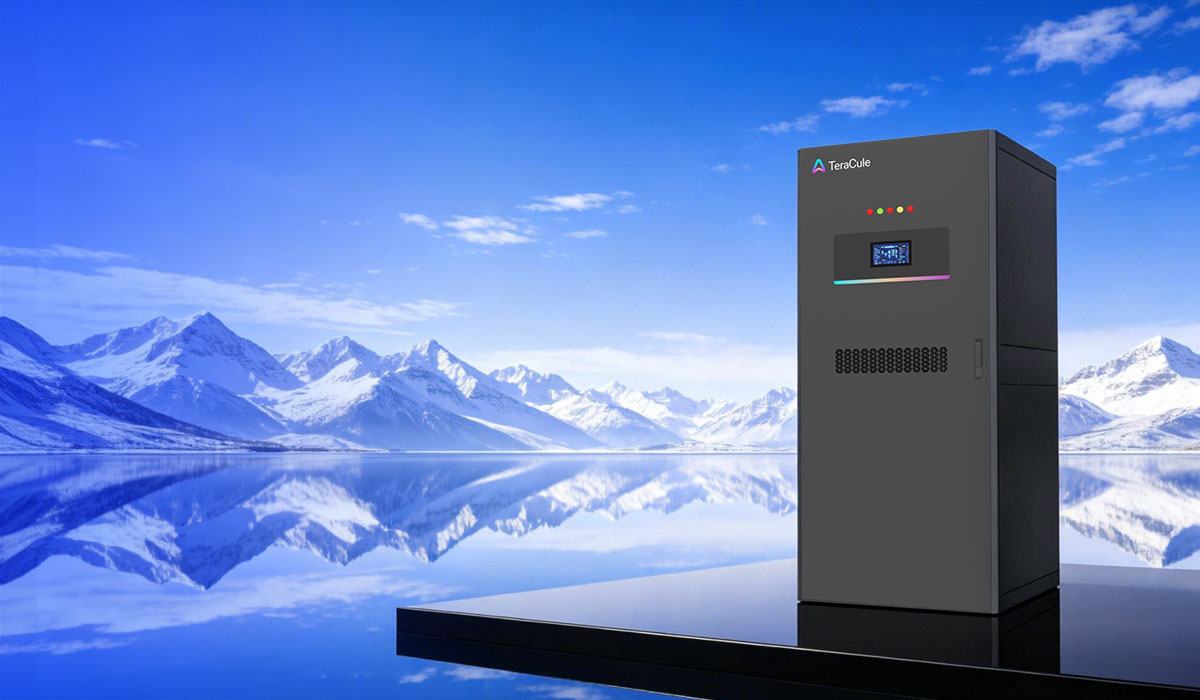

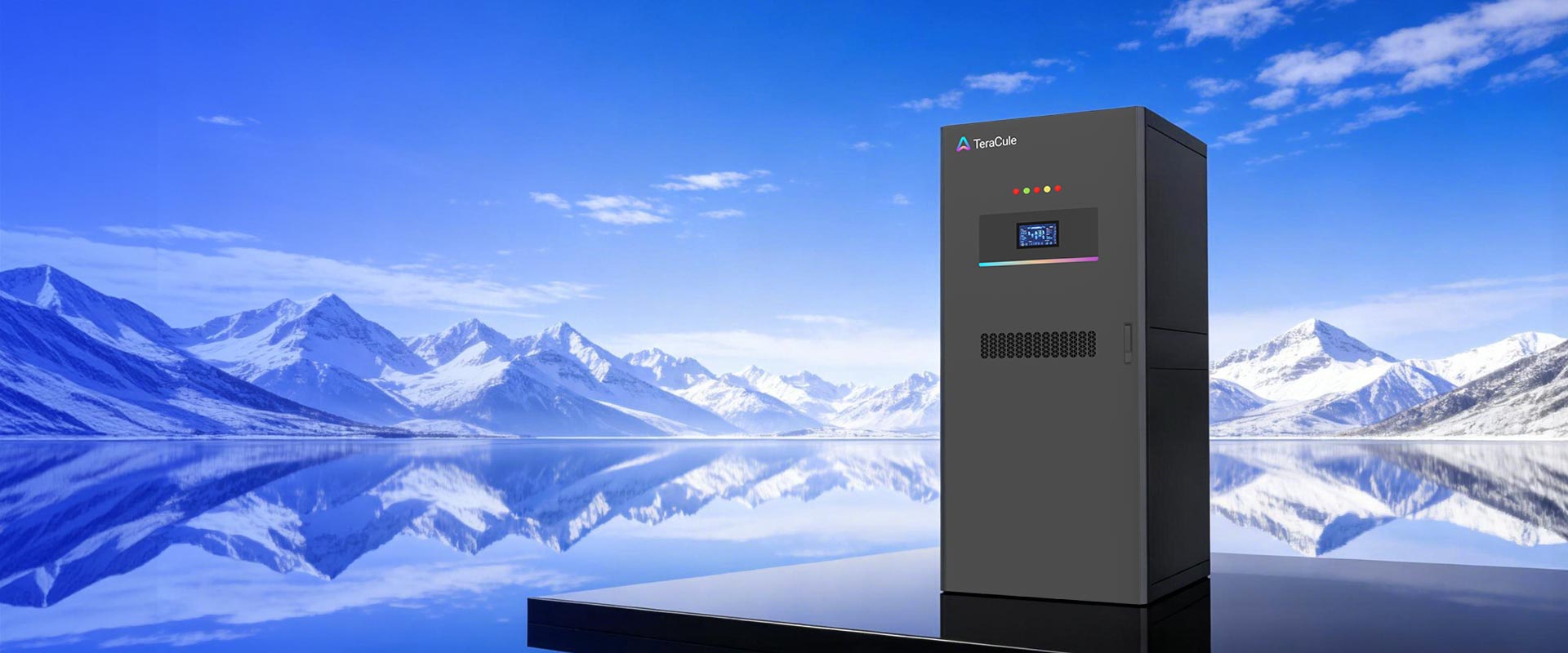

CDU 600
Compatible design: secondary-side up/down compatible pipe routing.
Real-time tuning: real-time dynamic optimization and regulation.
Safe and reliable: real-time online water quality monitoring, redundant design of filters/pumps.
Convenient operation and maintenance: device-level modular quick-release design.
Strong adaptability: full protocol compatibility design, redfish collaborative management.
Compatible Design
Real-time Tuning
Safe and Reliable
Convenient Operation and Maintenance
Strong Adaptability
| Unit | Refrigerant-to-Liquid CDU 600 | ||
| Cooling capacity | 600 kW | ||
| Dimensions(W×D×H) | 800×1200×2000 mm | ||
| Secondary side flow rate | 1250 LPM | ||
| Secondary side liquid supply temperature range | 15~40 ℃ | ||
| Coolant supply temperature on the secondary side in summer | 20 ℃ | ||
| Primary side refrigerant | R134A | ||
| Secondary side liquid cooling medium | DI water, EG25/PG25 | ||
| Voltage | 380-480 Vac / 3 P, 50 / 60 Hz | ||
| Pump configuration | 1+1 redundancy | ||
| Communication protocol | Modbus TCP/RTU, redfish | ||
|
Note: Performance may vary depending on operating conditions. For data not listed, please contact TeraCule. |
|||
